NPZ-PRO Series Plotters from Industry Leader Guangdong Ruizhou Technology Co., Ltd
Leading Positions in the Global Market
Ruizhou Factory was founded in 1995, making it one of the most experienced players in the market
NPZ-PRO plotter design and configuration have been tested in "field" conditions on billions of items and optimized for industry needs
NPZ-PRO Plotter Series is the result of close collaboration between refining industry specialists from China and Russia with Ruizhou engineers
NPZ-PRO Series, born from years of practical experience of industry professionals, not theory
Application in Repair AND MAINTENANCE of Refineries
Plotter for Refineries is speed and efficiency. Manufacture non-standard gaskets, seals, stencils, templates, and other items in minutes right on site.
Manufacturing Gaskets and Seals
NPZ-PRO Flatbed Plotters allow precise cutting of gaskets from paronite, rubber, and other sheet materials for sealing flange connections and other equipment.
Production of Insulation Materials
Devices can cut insulation and damping elements from foamed materials (EVA, EPE, PE), rubber, silicone, and PVC, protecting equipment from vibration and external influences.
Creating Templates and Stencils
Using the plotter, you can quickly make stencils for applying markings, protective coatings, and other designations on equipment and pipelines
Prototyping
Flatbed plotters are used to create prototypes of non-standard parts and elements, allowing rapid testing and manufacturing before mass production
Production of Protective Elements
It is possible to manufacture protective covers, overlays, and other elements for equipment and tools used in repair works.
Cutting Sheet Plastics and Composites
The plotter can process thin sheet plastics, composites, and other materials used for creating housings, protective casings, and other elements.
Some Modifications of NPZ-PRO Plotter Series
The following modifications of NPZ-PRO series flatbed cutting plotters of medium and large format are available:
- NPZ-PRO Plotter in modification with 2 gantries for double productivity, with conveyor table and extension table for collecting finished items by operator without stopping cutting process
- NPZ-PRO Plotter in modification with one gantry, with conveyor table and extension table for collecting finished items by operator without stopping cutting process
- NPZ-PRO Plotter in basic modification with one gantry and without extension table
NPZ-PRO-3016 PLUS 2H (1600X3000 MM) WITH 2 GANTRIES, CONVEYOR TABLE AND EXTENSION TABLE
NPZ-PRO-3016 PLUS (1600X3000 MM) WITH 1 GANTRY, CONVEYOR TABLE AND EXTENSION TABLE
NPZ-PRO-3016 (1600X3000 MM) WITH 1 GANTRY, STATIC TABLE AND WITHOUT EXTENSION TABLE
The following compact models of NPZ-PRO series flatbed cutting plotters are available:
- NPZ-PRO-0605 (500x600 mm) can be used in mobile laboratories and emergency repair vans
- NPZ-PRO-1007 (700x1000 mm) can be used in mobile laboratories and emergency repair vans
- NPZ-PRO-1510 (1000x1500 mm) the most popular compact model
NPZ-PRO-0605 (500x600 mm)
NPZ-PRO-1007 (700x1000 mm)
NPZ-PRO-1510 (1000x1500 mm)
Serial Model List
Compact: Only 1 Gantry
- NPZ-PRO-0605: 500×600 (static table only)
- NPZ-PRO-1007: 700×1000 (static table only)
- NPZ-PRO-1216: 1600×1200 (static or conveyor table and extension table)
- NPZ-PRO-1510: 1000×1500 (static or conveyor table and extension table)
Medium Format: Static, conveyor table and extension table, 1 gantry
- NPZ-PRO-1813: 1300×1800
- NPZ-PRO-1816: 1600×1800
- NPZ-PRO-1820: 2000×1800
- NPZ-PRO-2513: 1300×2500
- NPZ-PRO-2516: 1600×2500
- NPZ-PRO-2518: 1800×2500
- NPZ-PRO-2520: 2000×2500
Wide Format: Static, conveyor table, extension table, optionally 2nd gantry
- NPZ-PRO-3016: 1600×3000
- NPZ-PRO-3018: 1800×3000
- NPZ-PRO-3020: 2000×3000
- NPZ-PRO-3616: 1600×3600
- NPZ-PRO-4013: 1300×4000
- NPZ-PRO-4016: 1600×4000
- NPZ-PRO-4018: 1800×4000
- NPZ-PRO-5018: 1800×5000
- NPZ-PRO-6016: 1600×6000
- NPZ-PRO-6018: 1800×6000
- NPZ-PRO-3625: 2500×3600
*In addition to standard sizes, custom plotter production is available.
Videos of Ruizhou plotters working with gasket and other materials on our channels:
 плоттером Ruizhou RZCRT.jpg)
materials processed on "NPZ-PRO" series plotters
Technical rubber sheet EPDM-type, (heat/frost/acid/alkali resistant), up to 30 mm
Technical rubber sheet NBR-type (oil/gasoline resistant), up to 30 mm
Vibration damping elastomer plates up to 30 mm
Vacuum rubber up to 30 mm
Paronite
Silicone Rubber
Reinforced conveyor belts and straps
Porous Rubber
Thermally Expanded Graphite (TEG)
Offset Rubber
PVC
Polypropylene
Electro-cardboard
Various gasket materials
Aluminum, brass, steel foil
main requirements for flatbed cutting plotters for Refineries
Materials used at Refineries and necessary for their repair often have high density, viscosity, and strength, which complicates their cutting on a plotter, and for some plotter models simply makes it impossible. NPZ-PRO series plotters are designed specifically for cutting such materials.
The cutting head must have high piercing capability, large knife oscillation amplitude (at least 7 mm), sufficient oscillation frequency (at least 8000 oscillations per minute) and be compatible with strong and rigid knives, preferably with cylindrical shank. The most powerful in the world pneumatic oscillating cutting head POT9K-PRO is installed on NPZ-PRO series machines! Frequency 9000 oscillations per minute, amplitude 8 mm, force on knife up to 40 kg, head compatible with knives with cylindrical shank D=6 mm. Details about this head on the website https://www.pot9k.com/
The machine must be equipped with powerful and reliable servo motors, both on X,Y,Z axes and on tangential rotation axes of cutting tools. Servo motors and controllers from the leader are installed on NPZ-PRO series machines. Namely Panasonic A6 series!
For reliable fixation of processed material, the plotter must be equipped with a reinforced pressure vacuum table and a powerful vacuum pump. The vacuum table must be divided into zones that can be activated independently of each other through the machine control panel. NPZ-PRO series machines are equipped with reinforced pressure vacuum tables divided into a large number of vacuum zones. For example, NPZ-PRO-1813 plotter with 1300x1800 mm field has 24! small-sized vacuum zones, which allows simple and reliable fixation on the table of even miniature pieces of material including irregular shape without additional effort and time. Thus, even scraps are used, which ensures significant savings.
Since often material sheets due to improper storage are deformed and cannot be fixed only by even powerful vacuum, the plotter must be equipped with additional clamping means. NPZ-PRO series machines are equipped with such additional clamping devices as clamping plate D=108 mm and clamping rollers, which in turn are equipped with self-unwinding mechanism with covering film for cutting air-conducting and other difficult to process materials.
The main plotter tool cuts materials with a blade, which due to its shape does not allow making holes with vertical walls on thick materials (hole turns out slightly conical), also the knife cannot make holes of small diameters D=0.5-2 mm in materials thicker than 1-2 mm. Therefore you absolutely need such a tool as a hole punch, which has interchangeable nozzles of various diameters and allows making holes at very high speed, descending into material with rotation, which ensures compatibility with a wide range of materials.
Useful options that may come in handy for you

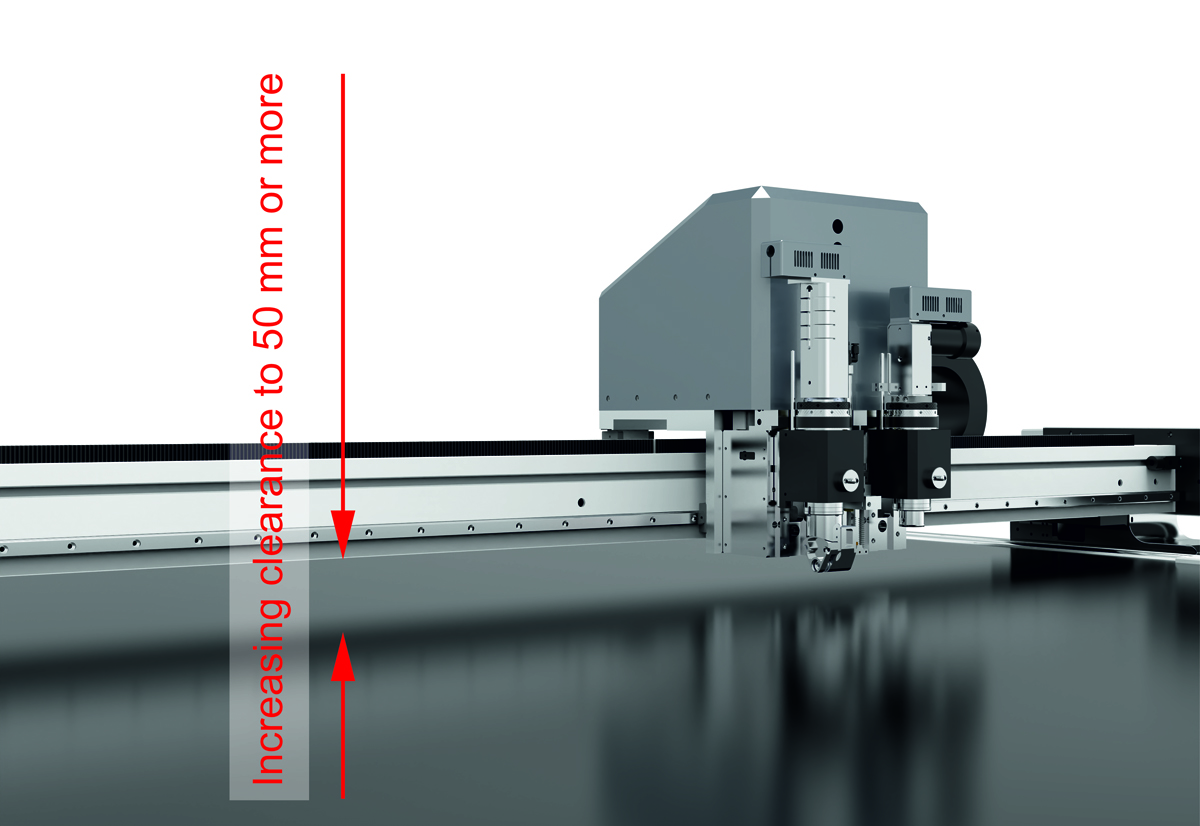

Increasing clearance and Z-axis travel from 28 mm to 50 mm
Electric oscillating cutting head EOT: amplitude 5 mm, frequency up to 18000 osc./min, compatible with flat blades thickness 0.63 mm and 1.00 mm. Suitable for high-speed cutting of thin and soft materials including rubber
Tangential non-oscillating cutting head is suitable for working with simple thin materials
Milling Spindle
Expands the range of processed materials to such as plywood, acrylic, hard plastics, textolite, etc. Spindles up to 2kW power and frequency up to 60000 rpm are available.
Projector for visualizing cut objects on the work table (on material)
Will allow the operator to conveniently and quickly place cut objects on pieces of material of irregular shape, for example, on scraps – this is savings.
ERT/DRT - motorized disc tool for cutting fabrics
Any fabrics including technical and tent ones can be cut with this tool with high performance.
Device for printing and sticking stickers
Installed on the plotter gantry, allows marking cut items with paper stickers with information.
